LINEAR FLOOR DRAIN WITH STAINLESS STEEL FRAME SIDE OUTLET D40 450MM MATT GRATE KLASIK/FLOOR CH450KN1 CHUDEJ

Name: ΓΡΑΜΜΙΚΟ ΣΙΦΩΝΙ ΔΑΠΕΔΟΥ ΜΕ ΠΛΑΙΣΙΟ ΑΠΟ ΑΝΟΞΕΙΔΩΤΟ ΑΤΣΑΛΙ ΠΛΕΥΡΙΚΗ ΕΞΟΔΟΣ D40 450ΜΜ ΜΑΤ ΣΧΑΡΑ KLASIK/FLOOR CH450KN1 CHUDEJ
Brand: Chudej
SKU: CH450KN1
Availability: InStock

Product code: CH450KN1 Tags: 450mm, D40, Klasik/Floor, Matte, Πλευρική Έξοδος

Subscribe to our Newsletter

Hurry up and get a 5% discount on your first order!

Linear floor drain with stainless steel frame, side outlet D40 450mm matte grate Klasik/Floor

109,50 €

1-3 days

Add to compare

Add to wishlist

Pickup from Store

For your convenience, we offer the option to pick up plumbing items and spare parts from our store. Deliveries are carried out on weekdays only, from Monday to Friday, exclusively between 09:00 and 14:00.

Select in-store pickup at checkout and come to collect your products at a time that is most convenient for you. We look forward to seeing you!

Shipping and Returns

Our customers' satisfaction is paramount, and that includes the shipping and return process for hydraulic and sanitary products. At Watermart, we ensure that your orders are handled with precision and speed. If for any reason you're not completely satisfied with your delivery, we have a flexible return policy in place. Reach out to us within 15 days from the date of delivery to organize the return of the product. We undertake to replace the product or refund your money, depending on the case. Your satisfaction is our priority.

Product Care

Caring for plumbing and sanitary products is essential for maintaining their functionality and aesthetics. At Watermart, we recommend handling them with care and using appropriate products. Clean the products regularly with a soft cloth and mild detergent to preserve their shine and hygiene. Avoid using abrasive cleaners on glass or metal surfaces, as they may cause damage. Also, regularly check connections and functions for possible leaks or issues, and consult a specialized technician if in doubt. With the right care, plumbing and sanitary products will maintain their functionality and aesthetics for a longer period.

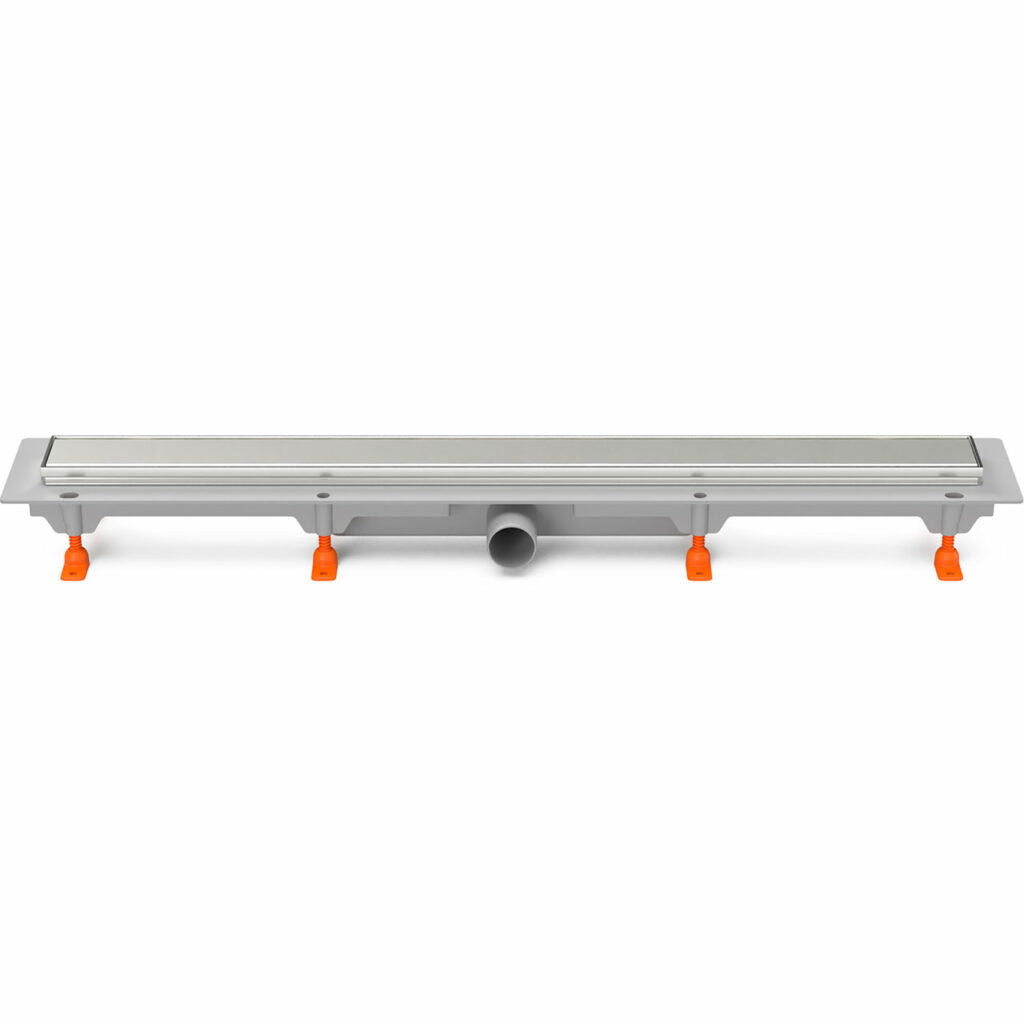

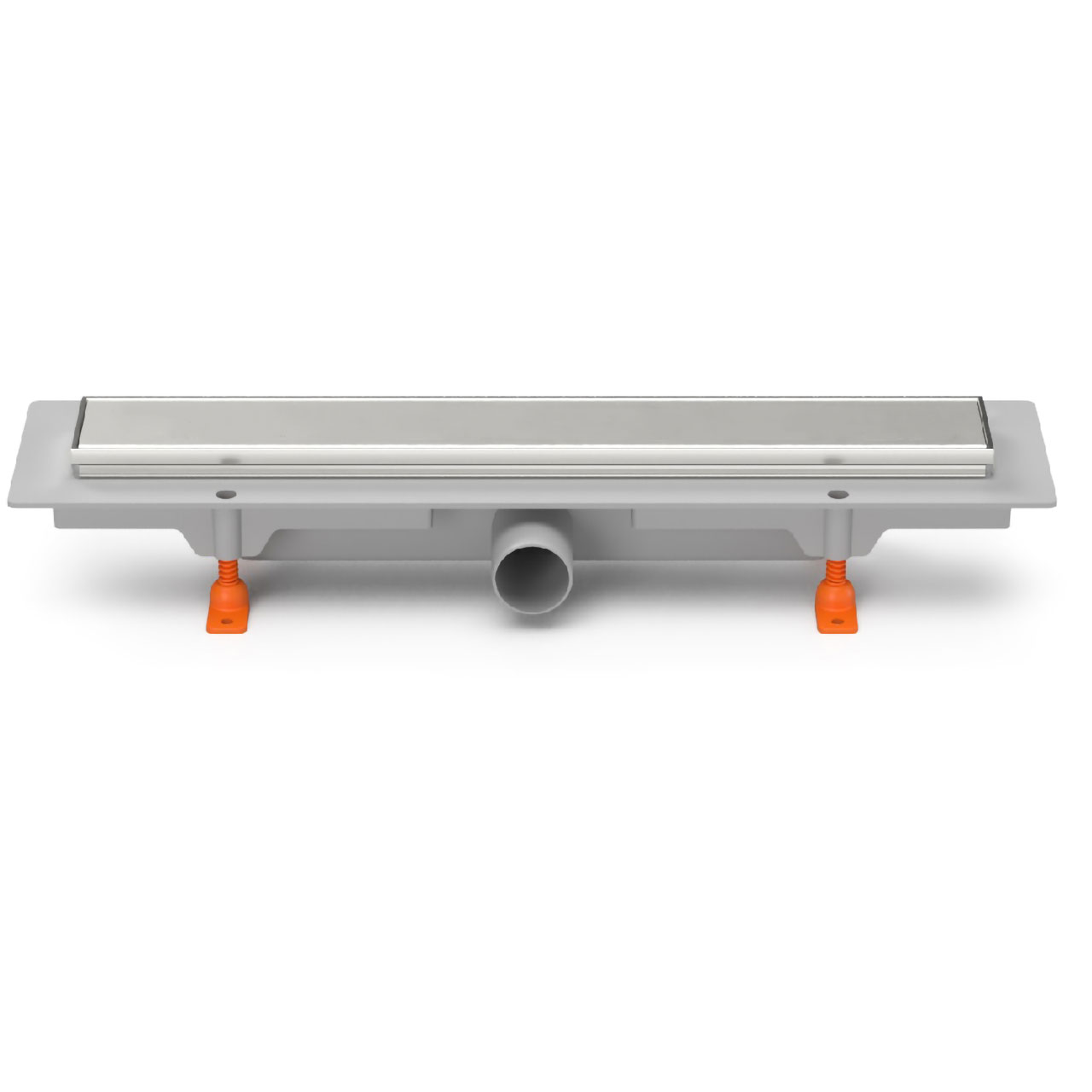

LINEAR FLOOR DRAIN WITH STAINLESS STEEL FRAME SIDE OUTLET D40 450MM MATT GRATE KLASIK/FLOOR

A linear floor drain is essential for every bathroom. Due to its unique anti-odor design, low installation height, high flow rate, and wide range of stainless steel grate widths, it meets the demands of the most discerning customers and is an ideal solution for your bathroom.

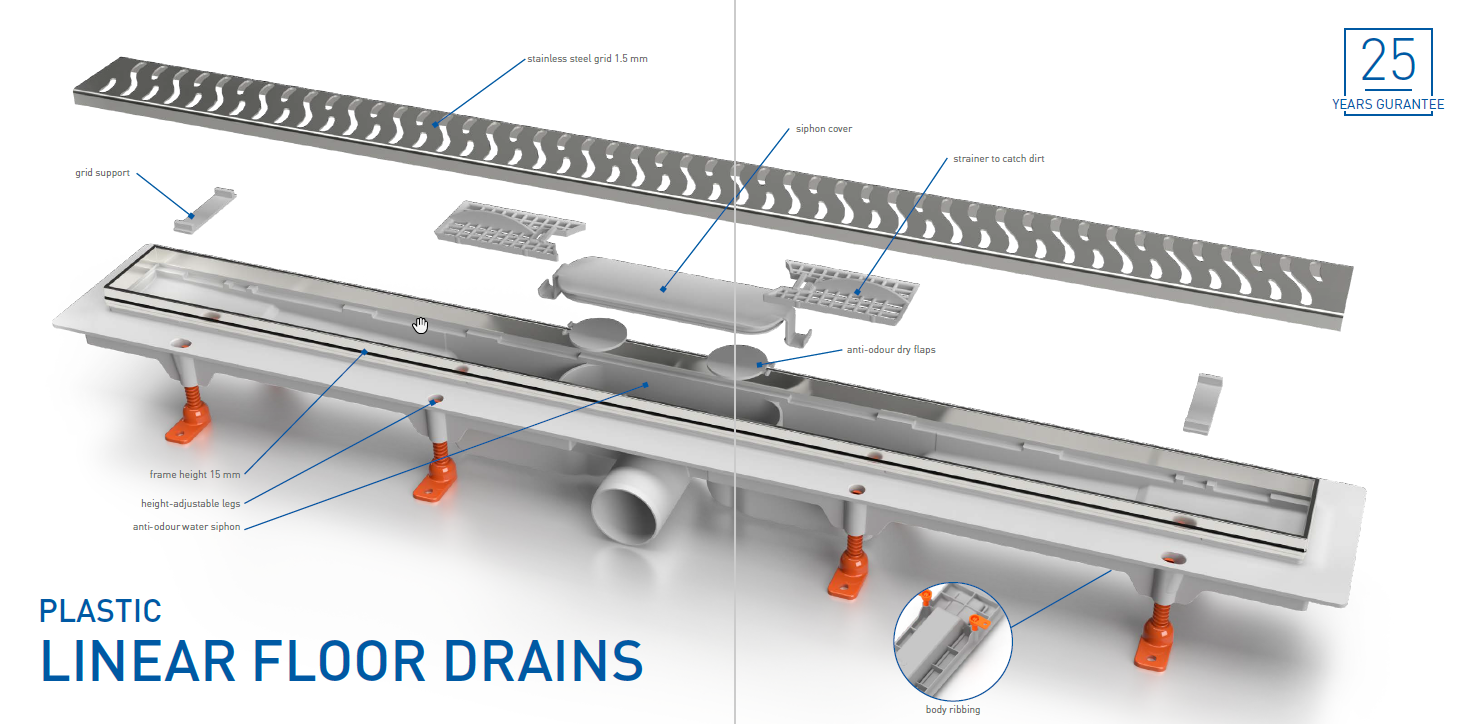

The bottom part is made of polypropylene, while the frame and grid are made of stainless steel DIN 1.4301, allowing for a load of K3 (up to 300 kg). The minimum installation height is 65 mm, and the drainage is height-adjustable. Designed for connection to sewage pipes Ø 40/50 mm. The package includes a self-adhesive waterproof membrane, adjustable spacers, nylon plugs, a plastic key for removing the stainless steel grid, and assembly instructions.

Load Class K3 (300 kg).

Tested according to EN 1253.

Product Code: CH450KN1

Features of the siphon:

Low installation height of 50 mm
Height adjustment between 65 to 87 mm
Flow rate 30-38 l/min according to EN 1253
Water level trap combined with dry blades
Load capacity K3 (300 kg)
Stainless steel grate 1.5 mm, available in glossy/matt finishes
Series sizes 350, 450, 550, 650, 750, 850, 950 mm
Easy disassembly for cleaning
Frame height 15 mm
Optional grating for tiling
Reinforced body with ribbing
Filter for debris retention

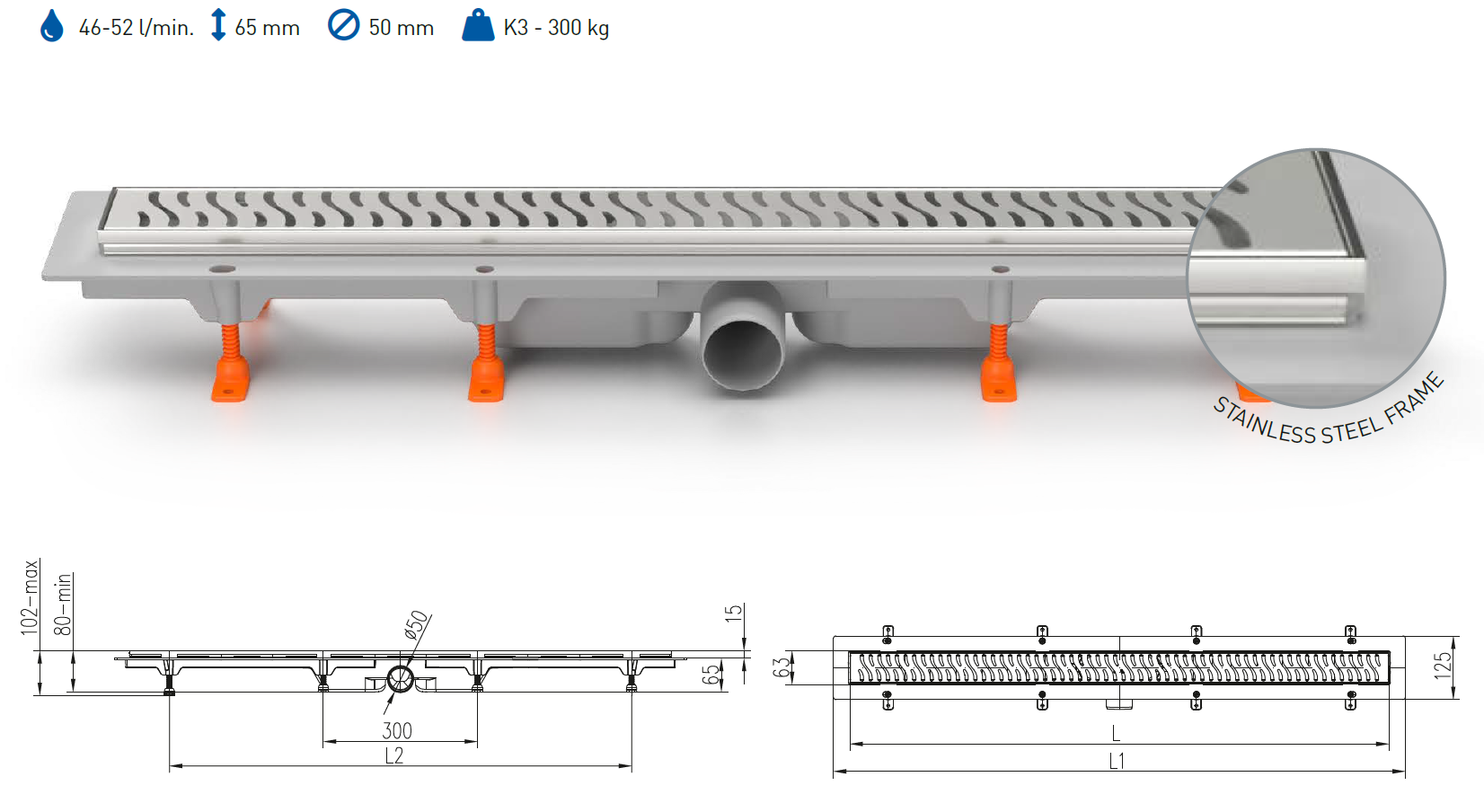

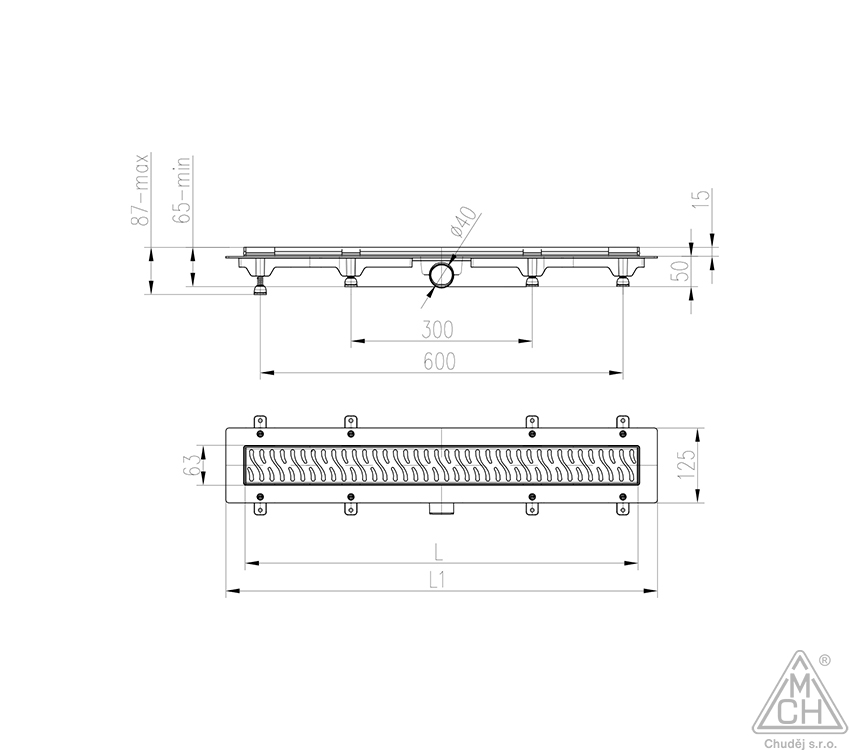

L [mm]	L1 [mm]	L2 [mm]	Weight [kg/pc]
350	415	295	1,13
450	515	295	1,30
550	615	295	1,52
650	715	595	1,76
750	815	695	2,04
850	915	795	2,22
950	1015	895	2,42

After 30 years in the drainage systems industry, Chudej now stands among the market leaders! The company is based in the Czech Republic, where it also maintains production facilities, spare parts manufacturing, and warehousing. With a primary focus on quality and reliability, Chudej invests in research and development of product technology, setting it apart from its competitors. Its extensive range includes drains, channels, and drainage systems for floors and roads. Today, the company exports its products not only across Europe but worldwide!

If the order amount is over 200 euros, delivery is free.

If the product is available:

Delivery is made within 1-3 business days from the date of order confirmation.

If the product is not available:

The delivery time for backordered products ranges from 4 to 12 weeks. The final terms will be discussed with you and agreed upon in the delivery contract upon order confirmation. In this case, a 100% prepayment is required.

You can pay using any preferred method:

Payment by card online through the PayPal payment system.
Payment via any bank according to the issued invoice.

The receipt must be kept - this is very important and not just when purchasing sanitary ware. You will receive a tax receipt from us.

Length: 450 mm
Width: 63 mm
Frame height: 15 mm

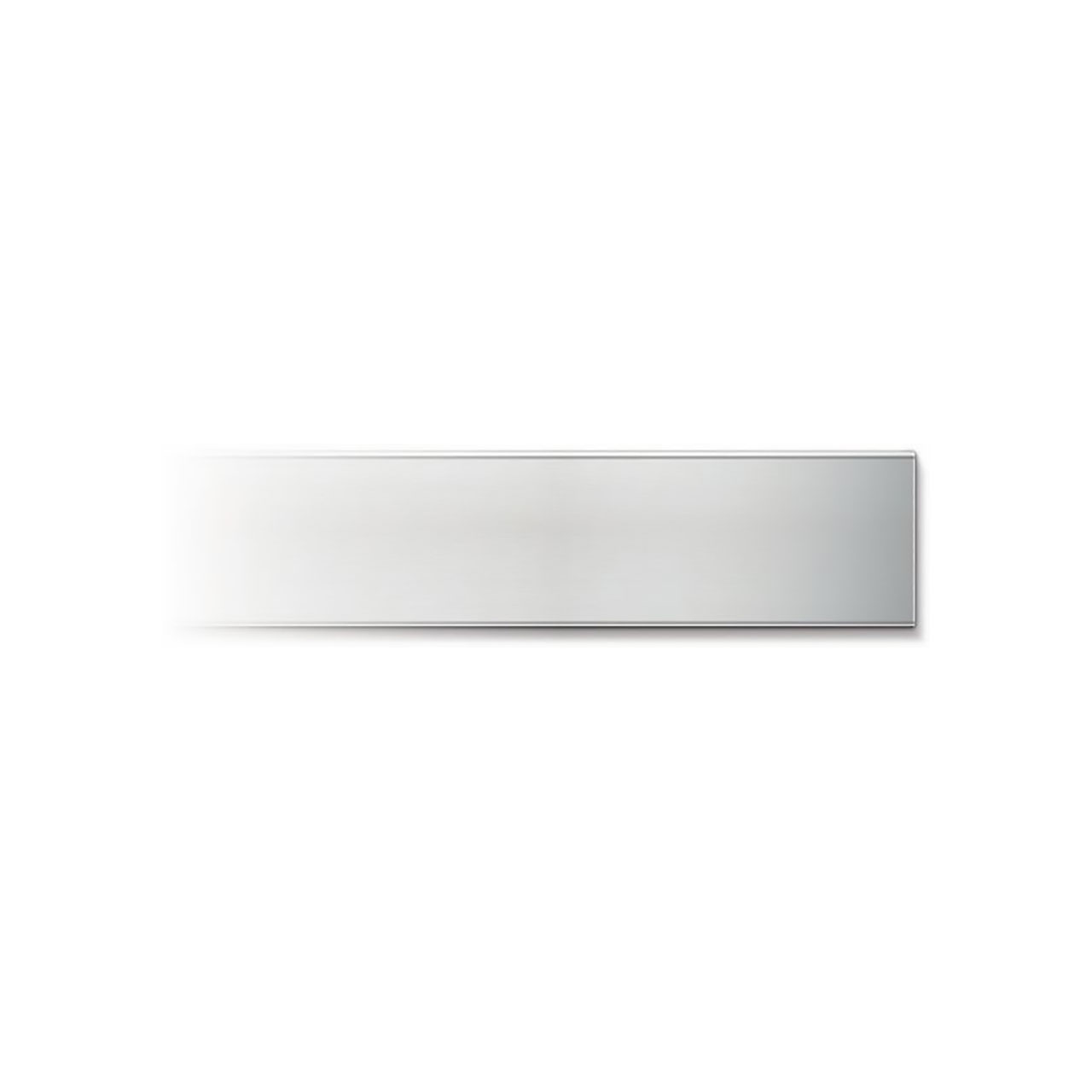

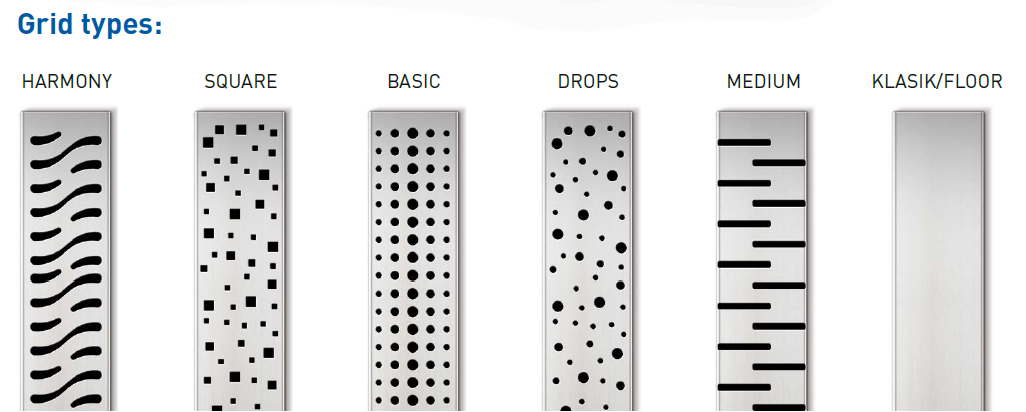

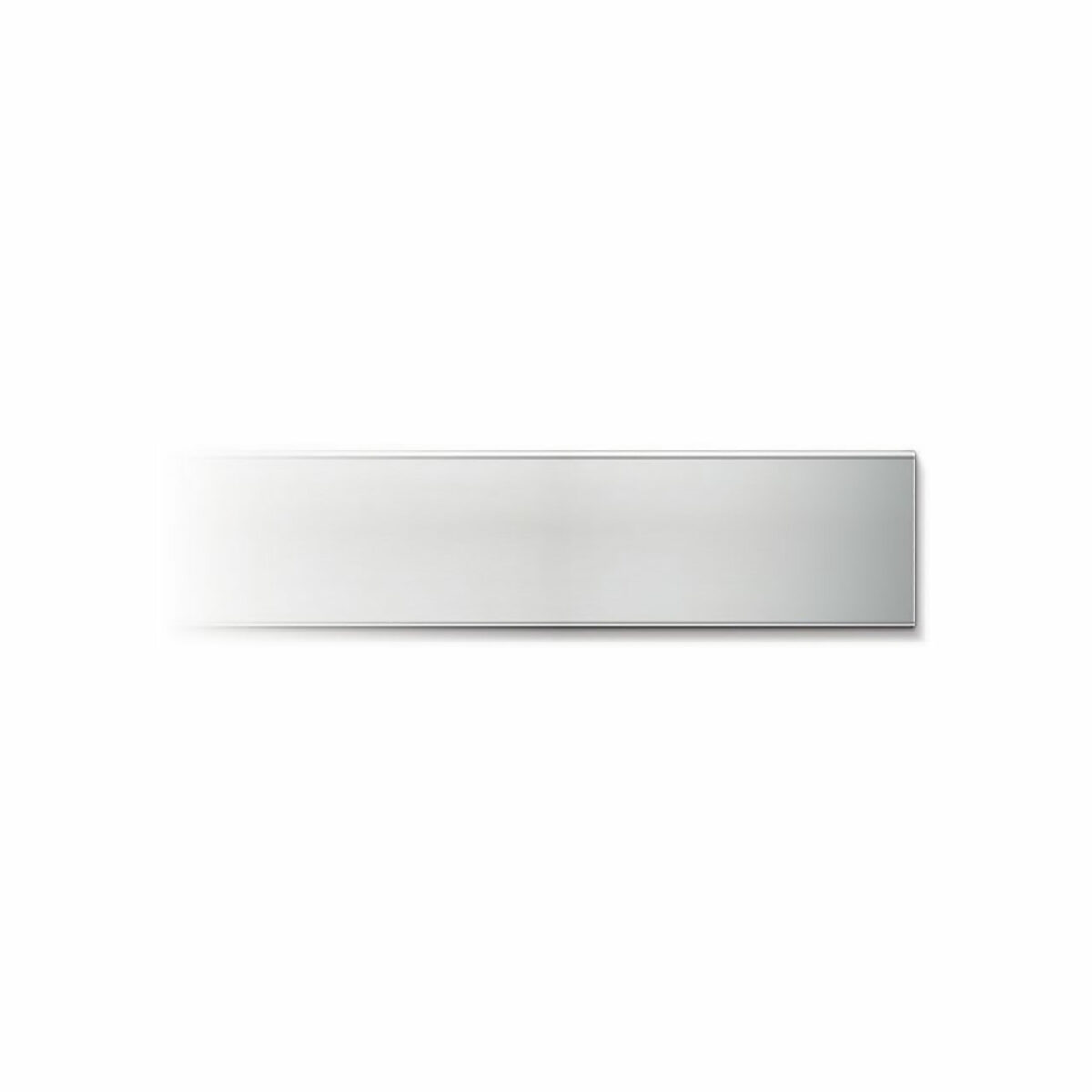

Grate type: KLASIK/FLOOR matte
Material: Polypropylene, Stainless steel
Telescopic legs: Yes
Stainless steel frame: Yes
Outlet diameter: 40
Type of outlet: Horizontal
Flow rate (l/min): 30-38
Load capacity (kg): 300
Load Class: K3
