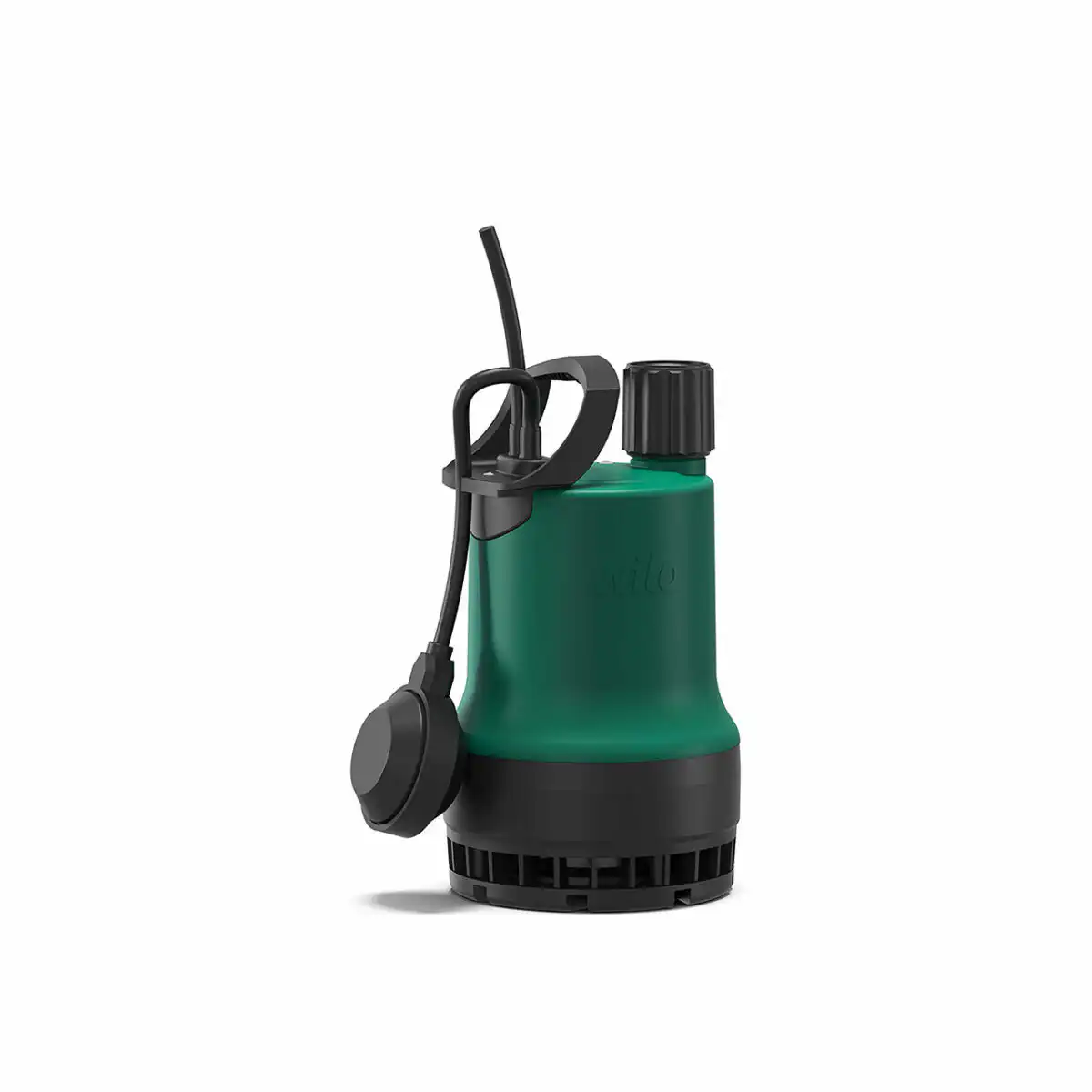

Wilo TMW 32/8 Submersible Pump for Clean and Rainwater
Submersible pump for fixed and portable wet installation within a sump. The pump features an integrated float switch for fully automated operation.
For pumping in residential areas:
- Wastewater without sewage
- Dirty water (with small amounts of sand and gravel)
Wastewater pump with an integrated vortex system (Twister function), open multi-channel impeller, and vertical threaded connection. Pump housing, suction head, and impeller are made of composite material. The single-phase motor (cooling jacket) includes an integrated operating capacitor and automatic thermal motor monitoring. The motor housing is made of stainless steel. The seal chamber is oil-filled with double sealing: a shaft sealing ring on the motor side and a mechanical seal on the pump side. It includes a connection cable with a float switch and an installed plug (CEE 7/7).
Product Code: 4048413
If the order amount is over 200 euros, delivery is free.
If the product is available:
- Delivery is made within 1-3 business days from the date of order confirmation.
If the product is not available:
- The delivery time for backordered products ranges from 4 to 12 weeks. The final terms will be discussed with you and agreed upon in the delivery contract upon order confirmation. In this case, a 100% prepayment is required.
You can pay using any preferred method:
- Payment by card online through the PayPal payment system.
- Payment via any bank according to the issued invoice.
The receipt must be kept - this is very important and not just when purchasing sanitary ware. You will receive a tax receipt from us.
Hydraulic elements
- Maximum operating pressure PN: 2 bar
- Type of impeller design: Multichannel impeller, open type
- Free passage of solid particles in the hydraulic system: 10 mm
- Maximum immersion depth: 1 m
- Minimum liquid temperature Tmin: 3 °C
- Maximum liquid temperature Tmax: 35 °C
- Minimum ambient temperature Tmin: 3 °C
- Maximum ambient temperature Tmax: 35 °C
Motor data
- Electrical connection: 1~230 V, 50 Hz
- Voltage tolerance: ±10 %
- Power factor: 0,98
- Rated power P2: 0,37 kW
- Input power P1 max: 450 W
- Rated current I: 2,1 A
- Starting current I: 4,8 A
- Starting method: Direct Online (DOL)
- Nominal speed n: 2900 /min
- Maximum starting frequency t: 50 1/h
- Insulation class: F
- Protection rating: IP68
- Operating mode (submersible): S1
- Operating mode (emergent): S3-25%
Cable
- Length of connecting cable: 4 m
- Type of cable: H07RN-F
- Cable cross-section: 3G1 mm²
- Connection plug: CEE7/7 (Schuko)
- Type of connection cable: Non-detachable
Equipment/Operation
- Float switch: Yes
- Explosion protection type: No
- Motor protection: Bimetal
Materials
- Pump casing: PP-GF30
- Impeller: PPE/PS-GF20
- Seal material in the pump: BQ1PFF
- Seal material on the motor side: NBR
- Seal material: NBR
- Motor material: Stainless steel
Installation dimensions
- Connection to the discharge pipe: G 1¼
Product Data
- Manufacturer: Wilo
- Product Name: Drain TMW 32/8
- Product Code: 4048413
- EAN Number: 4016322477426
- Color: Green/Black
- Minimum order quantity: 1

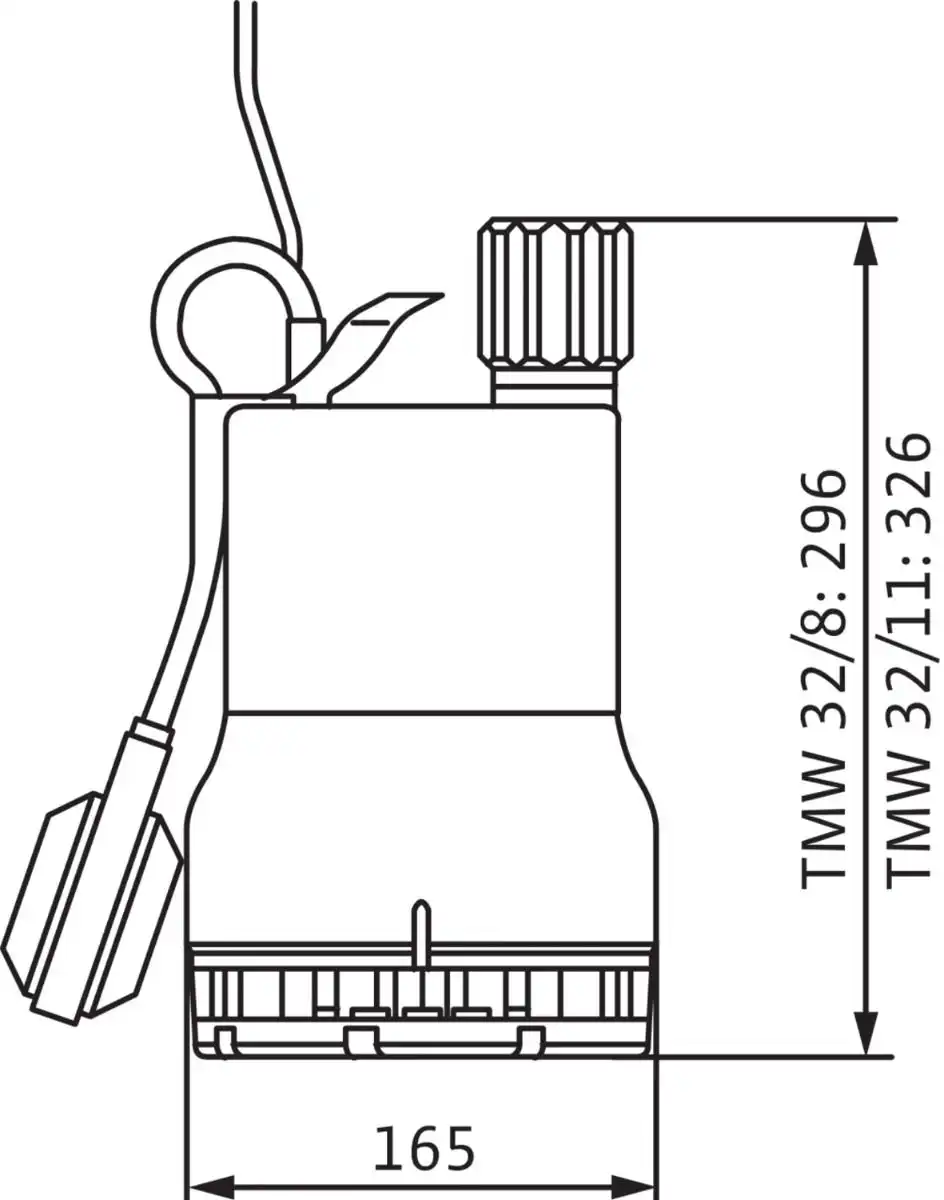

Dimensions and weights
- Length with packaging: 195 mm
- Length L: 165 mm
- Height with packaging: 315 mm
- Height H: 296 mm
- Width with packaging: 195 mm
- Width W: 165 mm
- Gross weight per m: 5,5 kg
- Net weight per m: 5 kg
| Weight | 5,5 κ. |
|---|---|
| Διαστάσεις | 19,5 × 19,5 × 31,5 cm |
| Brand |
Wilo |
