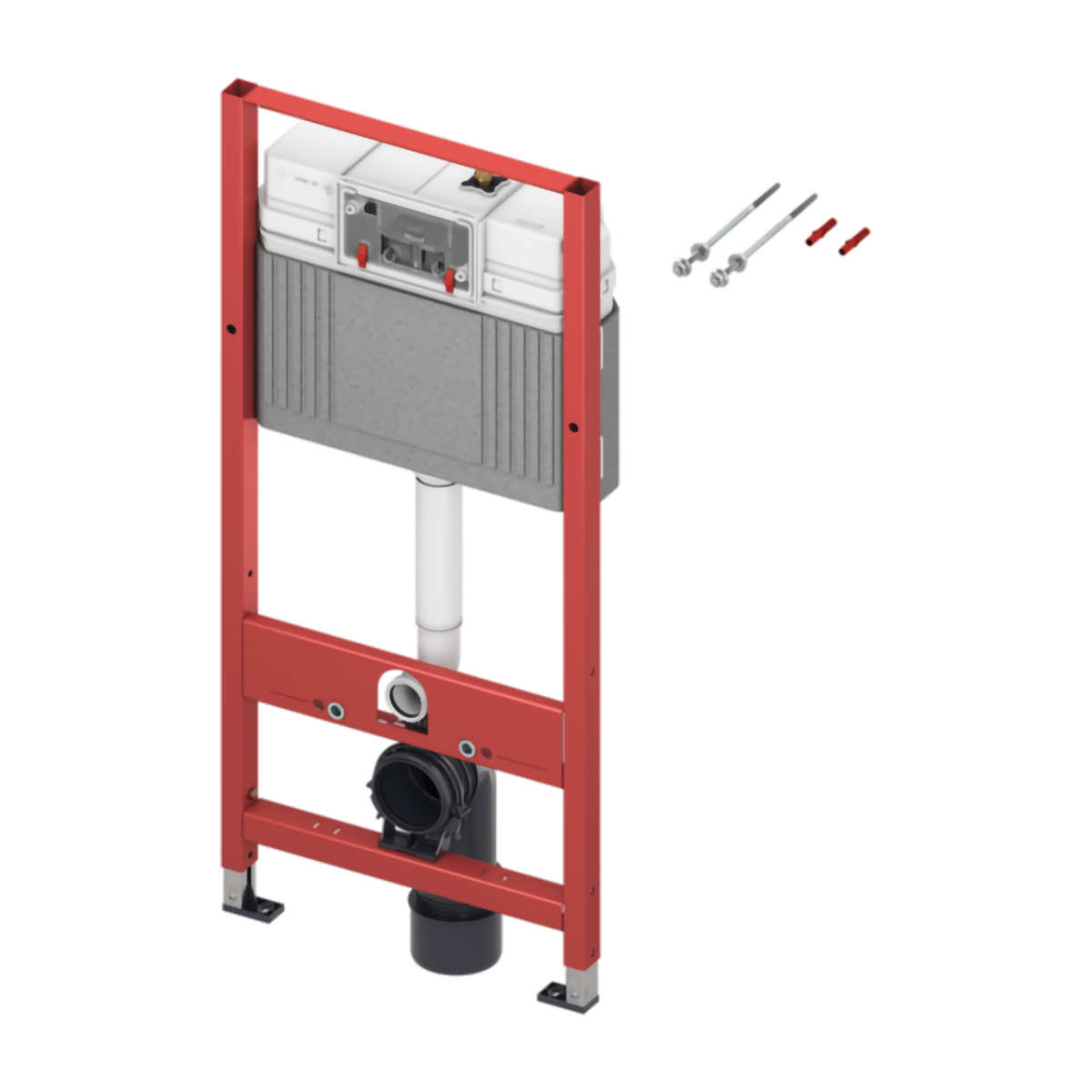

TECEbase toilet module with Base cistern, installation height 1120 mm
Toilet module including “easy fit” flush plate installation. For single block assembly, as a pre-wall module in front of solid walls, and for incorporation into metal or wooden stud walls.
Base cistern for front actuation:
- Safety tank made of impact-resistant plastic, tested to EN 14055
- Cistern fully pre-assembled
- Cistern connection with outer thread R 1/2" at the top, compatible with quick adapters
- 3-way stop valve; shut-off valve with flush function with installed filling valve
- 10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush.
- Insulated against condensation water
- For TECE flush plates and toilet flush handle
- Can be used as a single or dual-flush cistern
- “easy fit” flush plate installation
- Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109
Module frame:
- Self-supporting, powder-coated
- Two M 12 retaining bolts and nuts
- Mounting set for solid walls
- Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP
- Joint adapter also suitable for horizontal installation
- DN 90 toilet connection set including protective plug
Please order separately:
- Toilet flush plate
- Insert chute for cleaning tablets (optional)
- TECEone upgrade set for dry-wall construction
- Shell structure/fine installation set to connect an electronic shower toilet
Note:
If toilet ceramics with a reduced supporting surface are used (= distance from middle of fixing bolt to lower edge of supporting surface is not larger than 18 cm) - e.g. V & B Memento, Sentique, Subway 2.0 - it is necessary to install the steel brace set 9041029 in the lower build space.
If the order amount is over 200 euros, delivery is free.
If the product is available:
- Delivery is made within 1-3 business days from the date of order confirmation.
If the product is not available:
- The delivery time for backordered products ranges from 4 to 12 weeks. The final terms will be discussed with you and agreed upon in the delivery contract upon order confirmation. In this case, a 100% prepayment is required.
You can pay using any preferred method:
- Payment by card online through the PayPal payment system.
- Payment via any bank according to the issued invoice.
The receipt must be kept - this is very important and not just when purchasing sanitary ware. You will receive a tax receipt from us.

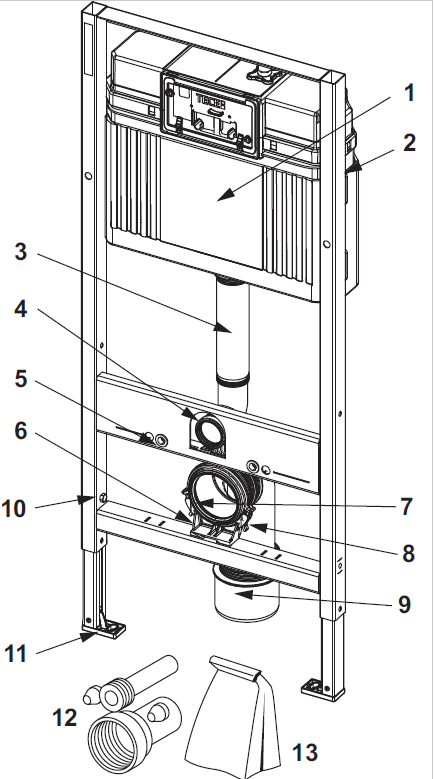

- Base cistern "open", complete 9820466
- Assembly kit for Uni cistern 9820040
- Flush pipe with O-ring, length 269 mm, dry-wall construction 9820011
- Flush pipe seal 9820015
- Clinch nut 9820071
- Toilet drain bend holder complete, mounting on crossbeam at bottom (from 04/2017) 9820348
- Seal for drain bend DN 90 9820139
- TECE toilet connection elbow DN 90 for dry-wall modules, PP 9820134
- TECE 90° toilet connector, DN 90/100 PP adapter 9820136
- Foot brake 9820072
- Module foot made of plastic (1 pc.) 9820239
- TECE toilet connection set DN 90, PP, 200 mm 9820057
- By-pack 9820244
| Weight | 10 κ. |
|---|---|
